High Speed Metal Exhaust Fan
keywords:
hiddenValue
- Detail
-

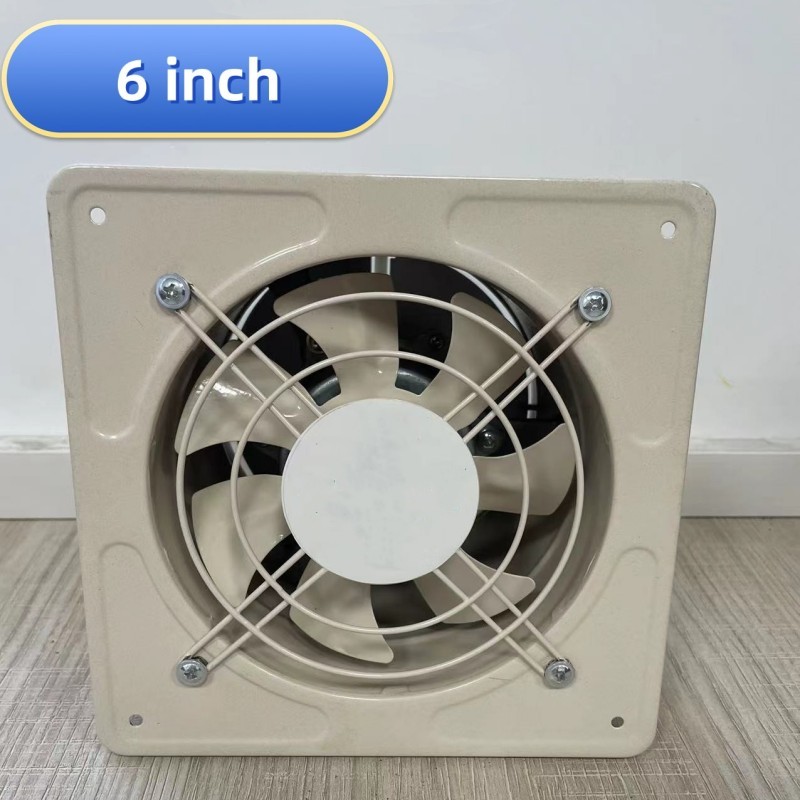

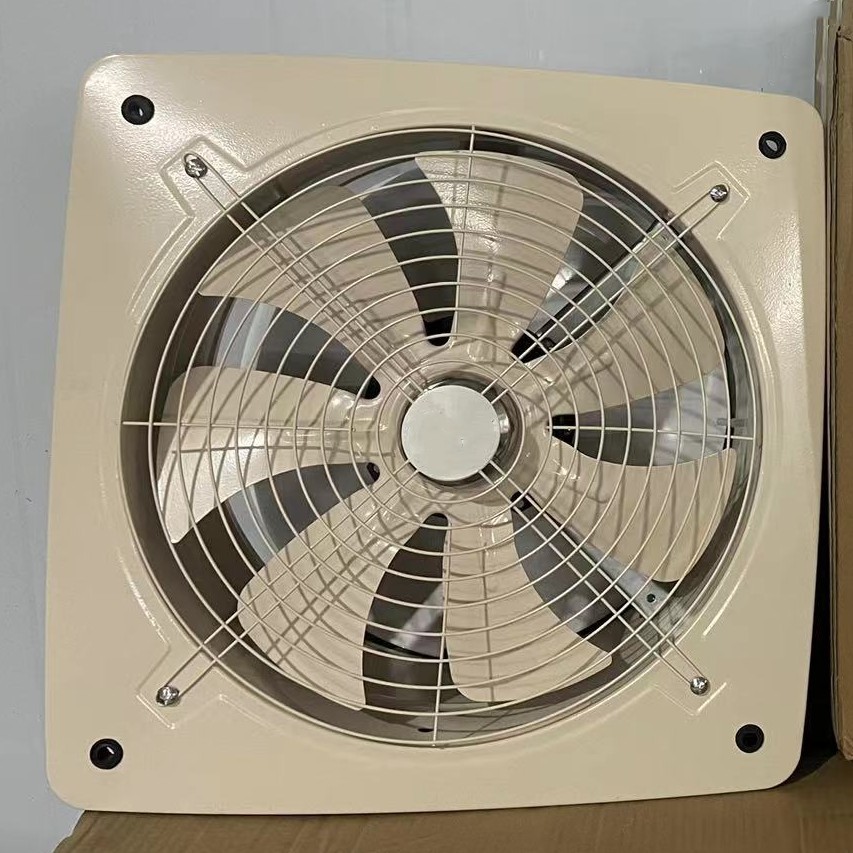

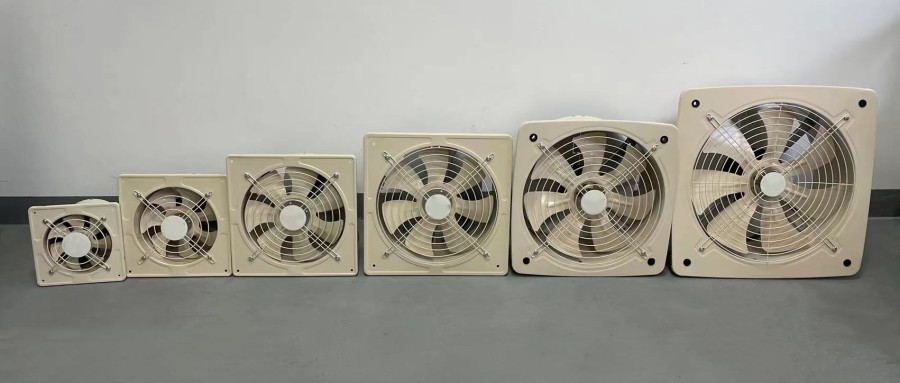

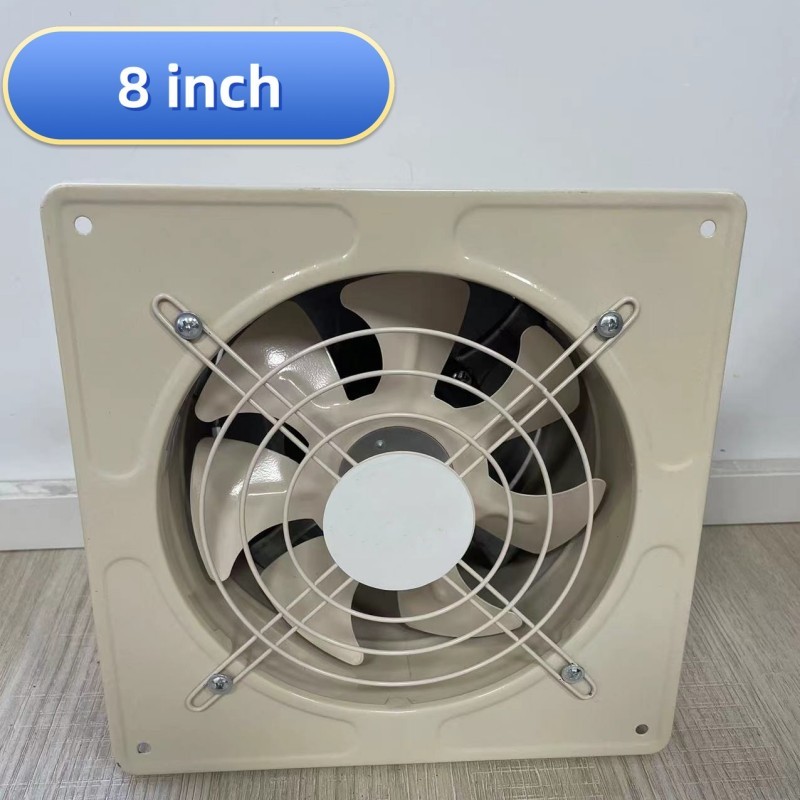

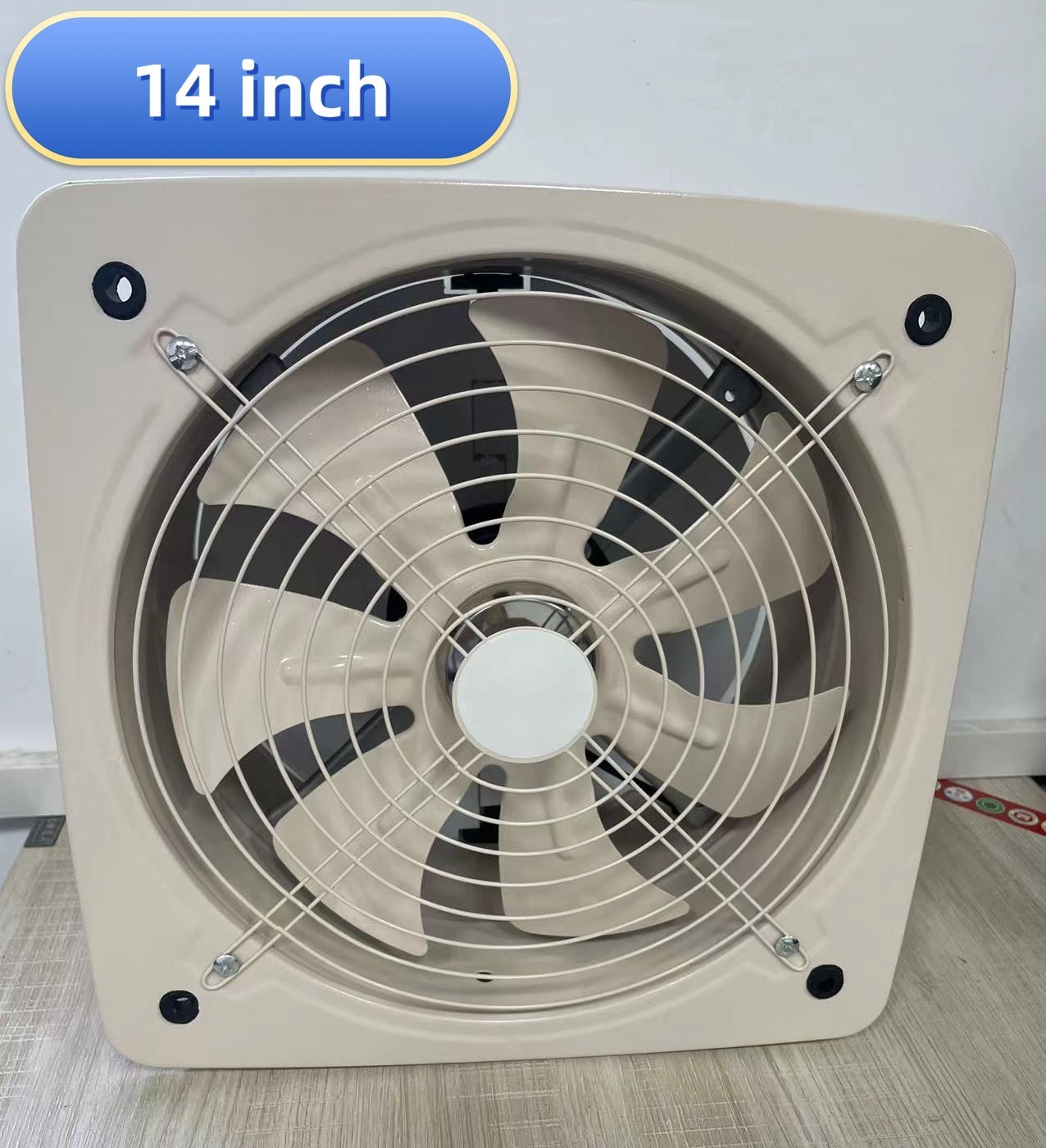

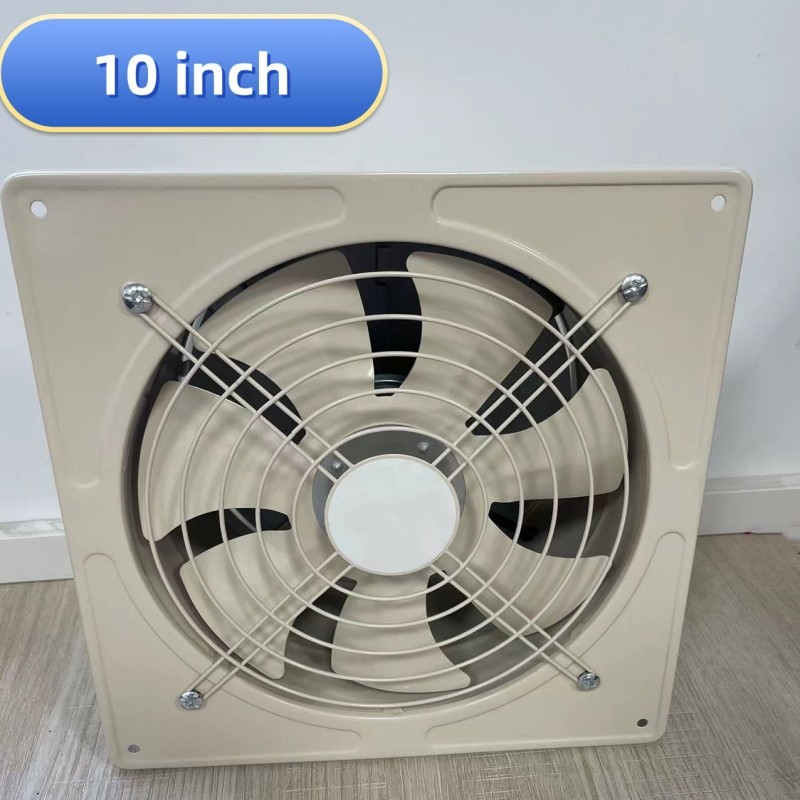

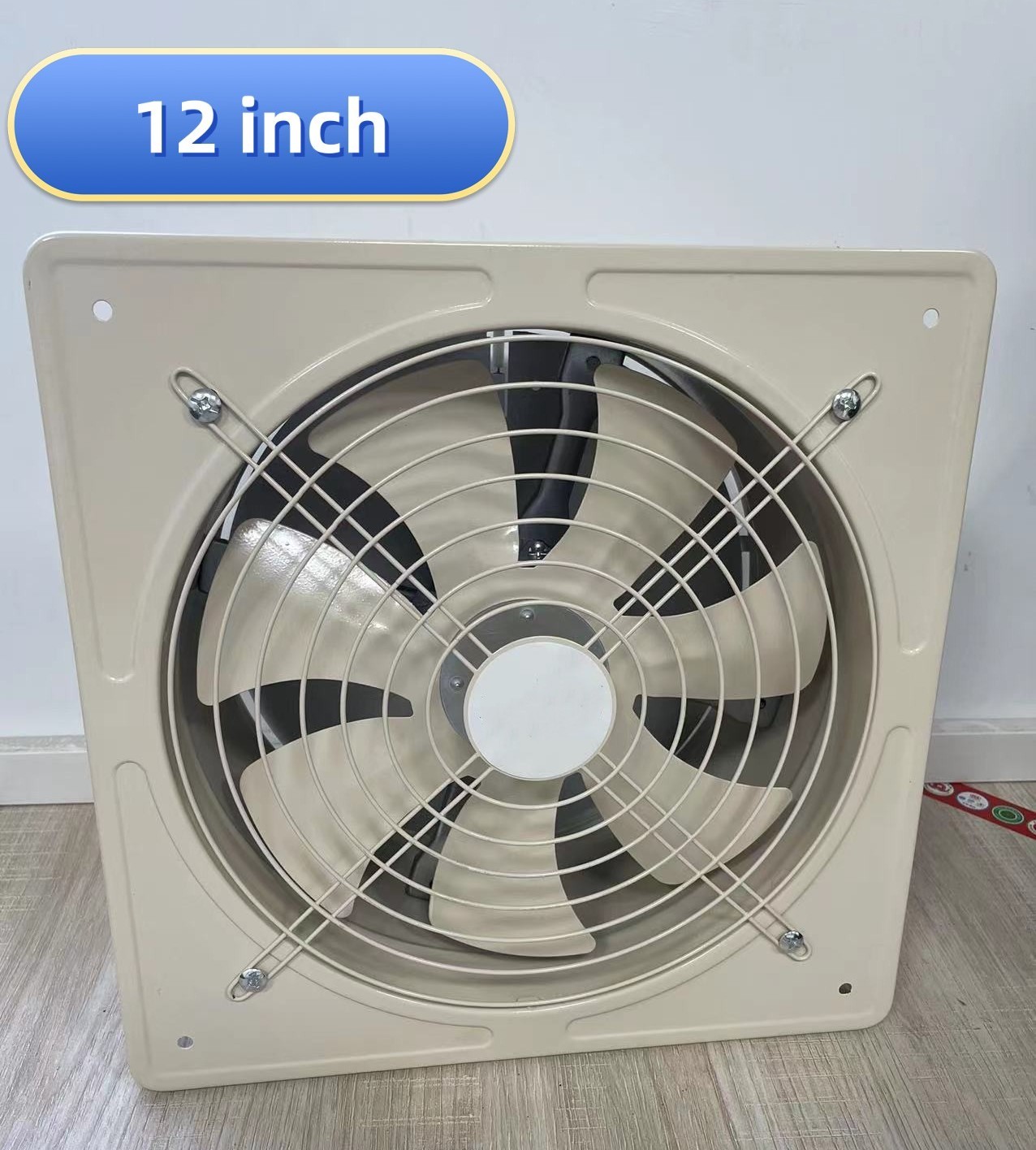

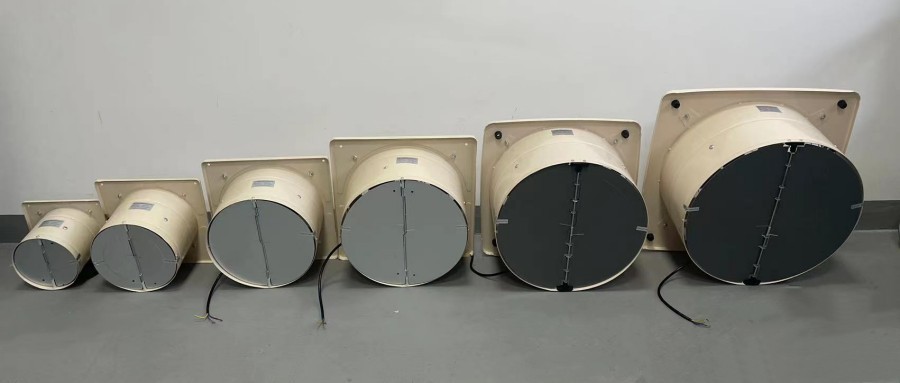

6 inches / 8 inches / 10 inches / 12 inches / 14 inches / 16 inches Feature: • 100% copper coil motor with fuse, durable ball bearing, • Support frame in sheet steel by punching coated with powder, safe and durable in use • 7-blades metal propeller, large air flow and low in noise • Front square panel with grill, and round back side duct with valve • Air renewal and exhaust fumes in all type of premises
6" Exhaust Fan 8" Exhaust Fan 10" Exhaust Fan 12" Exhaust Fan 14" Exhaust Fan 16" Exhaust Fan Model APB-6 APB-8 APB-10 APB-12 APB-14 APB-16 Size Φ6 inch (15cms) Φ8 inch (20cms) Φ10 inch (25cms) Φ12 inch (30cms) Φ14 inch (35cms) Φ16 inch (40cms) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V, 50 / 60Hz Power (Max.) 30W 45W 54W 68W 153W 221W Speeds (Max.) 2800rpm 2570rpm 2645rpm 2350rpm 2410rpm 2460rpm Air Volume (m3/min) 5.8 16.3 26 31.6 45.8 71.6 Air Flow (Max.) 164 CFM 461 CFM 736 CFM 894 CFM 1296 CFM 2027 CFM Std. Packing (pcs/ctn) 1 1 1 1 1 1 Packing Size (cm) 19X15X19.5 25.5X16X25.5 31X16.5X31 36X18X36 41.5X20X41.5 48X20X48 Std. Packing (pcs/ctn) 12 8 6 4 2 2 Whole Packing Size (cm) 51.3X43X45.5 54.5X36X55.5 56X33.5X66.6 79X38.5X39 44X44X45.5 53X43.5X54 Panel Size 190X190mm 250X250mm 300X300mm 355X355mm 410X410mm 478X478mm 6" Exhaust Fan 8" Exhaust Fan 10" Exhaust Fan 12" Exhaust Fan 14" Exhaust Fan 16" Exhaust Fan
Detail
|
|
|
|
|
|
|
| 6" Exhaust Fan | 8" Exhaust Fan | 10" Exhaust Fan | 12" Exhaust Fan | 14" Exhaust Fan | 16" Exhaust Fan | |
| Model | APB-6 | APB-8 | APB-10 | APB-12 | APB-14 | APB-16 |
| Size | Φ6 inch (15cms) | Φ8 inch (20cms) | Φ10 inch (25cms) | Φ12 inch (30cms) | Φ14 inch (35cms) | Φ16 inch (40cms) |
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V, 50 / 60Hz | ||
| Power (Max.) | 30W | 45W | 54W | 68W | 153W | 221W |
| Speeds (Max.) | 2800rpm | 2570rpm | 2645rpm | 2350rpm | 2410rpm | 2460rpm |
| Air Volume (m3/min) | 5.8 | 16.3 | 26 | 31.6 | 45.8 | 71.6 |
| Air Flow (Max.) | 164 CFM | 461 CFM | 736 CFM | 894 CFM | 1296 CFM | 2027 CFM |
| Std. Packing (pcs/ctn) | 1 | 1 | 1 | 1 | 1 | 1 |
| Packing Size (cm) | 19X15X19.5 | 25.5X16X25.5 | 31X16.5X31 | 36X18X36 | 41.5X20X41.5 | 48X20X48 |
| Std. Packing (pcs/ctn) | 12 | 8 | 6 | 4 | 2 | 2 |
| Whole Packing Size (cm) | 51.3X43X45.5 | 54.5X36X55.5 | 56X33.5X66.6 | 79X38.5X39 | 44X44X45.5 | 53X43.5X54 |

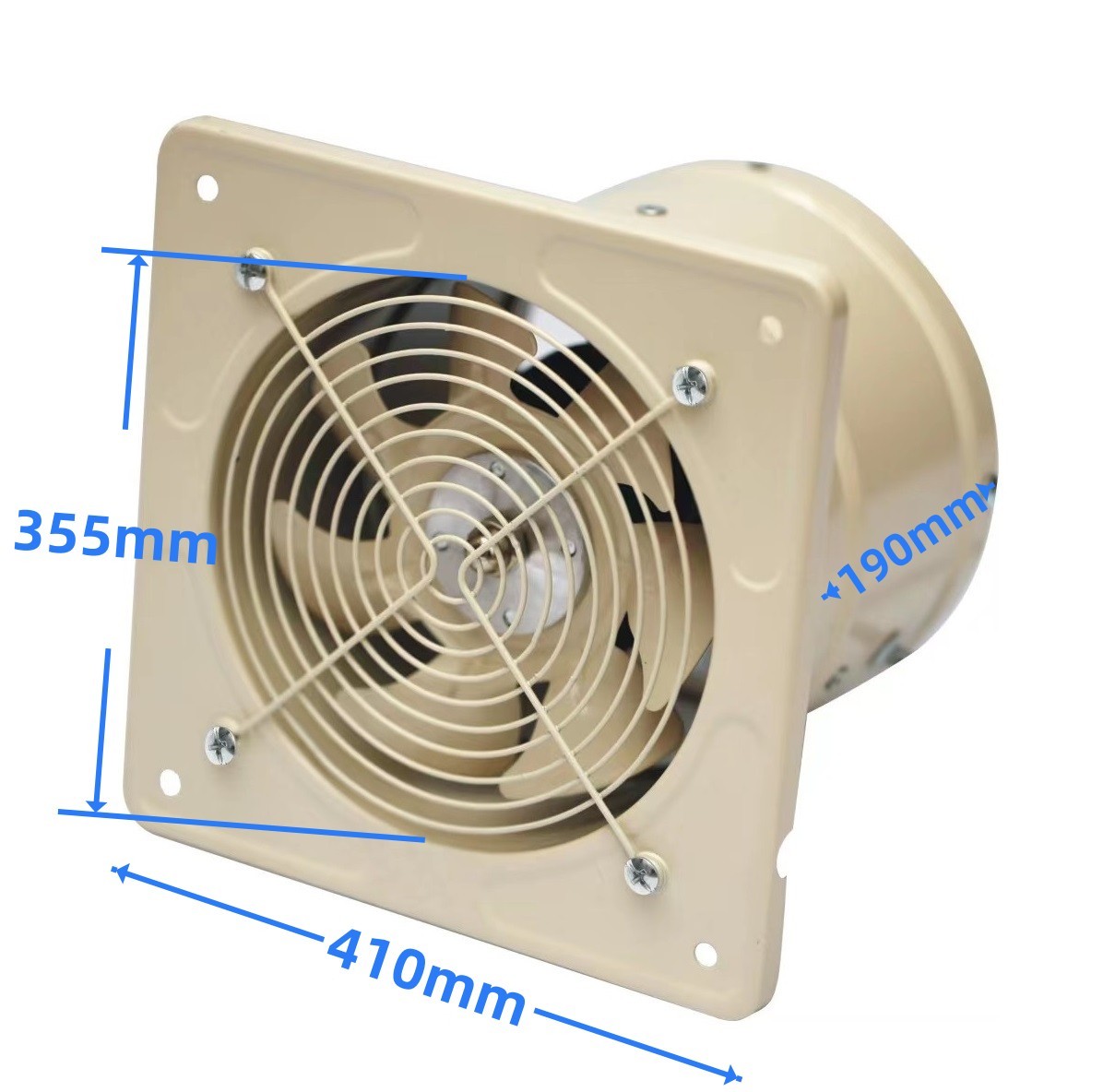

| Panel Size | 190X190mm | 250X250mm | 300X300mm | 355X355mm | 410X410mm | 478X478mm |
| 6" Exhaust Fan | 8" Exhaust Fan | 10" Exhaust Fan | 12" Exhaust Fan | 14" Exhaust Fan | 16" Exhaust Fan | |
|
|
|
|
|
|
