- Detail
-

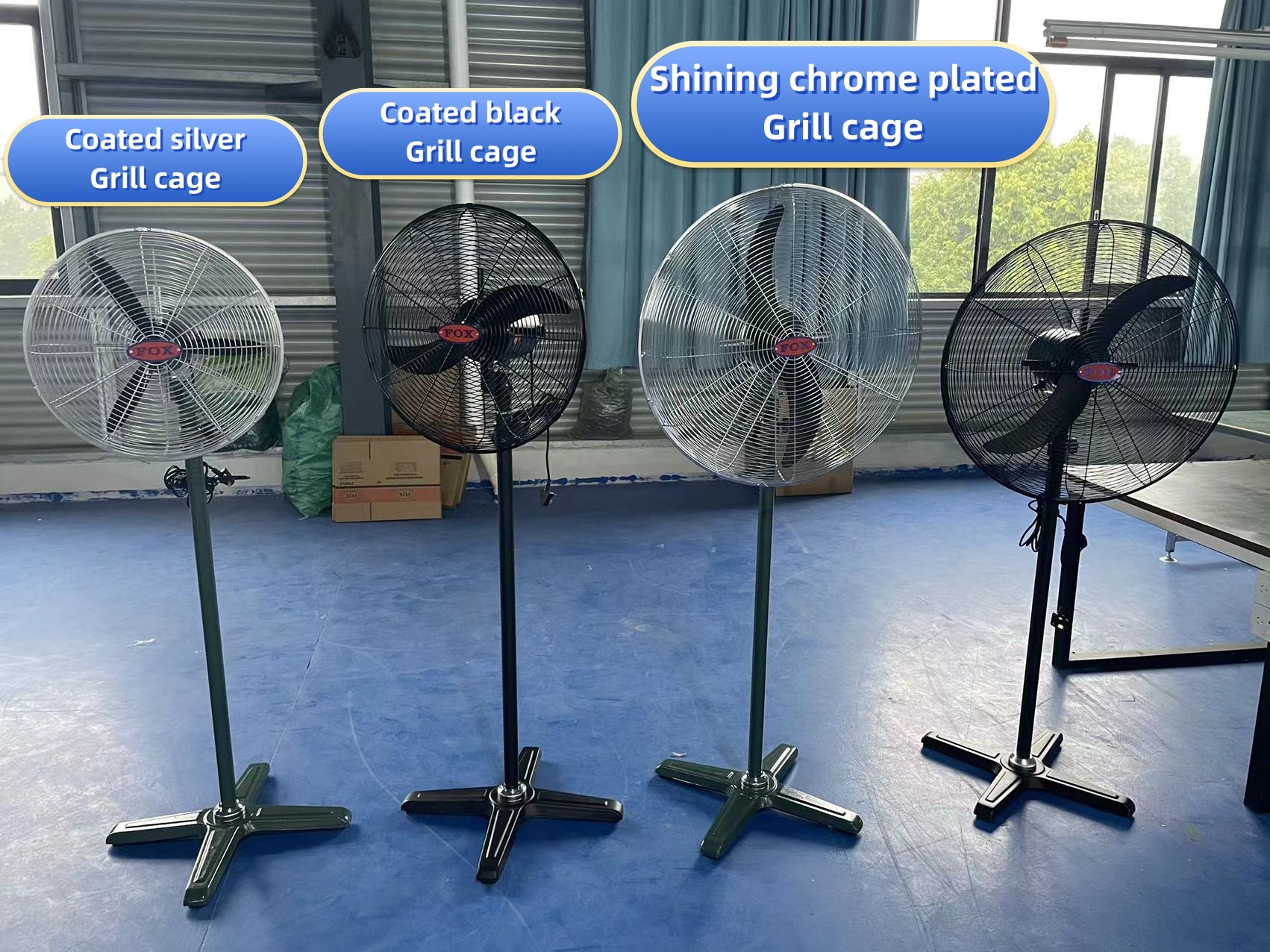

20 inches Industrial Electric Fan 24 inches Industrial Electric Fan 26 inches Industrial Electric Fan 30 inches Industrial Electric Fan Feature: •100% copper coil motor with fuse, durable ball bearing, create quiet, powerful, centralized and long distance air cooling • Heavy duty 2-blades die-casting aluminum propeller • 1.8-2.0mm wire diameter clip type steel spiral wire fan guard, painted black or silver grill cage, or shining chromed color • 1.3m / 1.6m or 1.9m strong stand pole, height adjustable • 5 or 7kg plastic cross base or 6kg metal X-shaped base • 3 speed control with oscillation
20" Pedestal Fan 24" Pedestal Fan 26" Pedestal Fan 30" Pedestal Fan Model FSB-50 FSB-60 FSB-65 FSB-75 Size Φ20 inch (50cms) Φ24 inch (60cms) Φ26 inch (65cms) Φ30 inch (75cms) Tilting Angle 75° ( Left & right） 40° ( Up & down) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V, 50 / 60Hz Power (Max.) 130W 150W 165W 220W Speeds (Max.) 1380rpm 1380rpm 1380rpm 1380rpm Air Volume (m3/min) 150 175 195 270 Air Flow (Max.) 5300 CFM 6200 CFM 6900 CFM 9500 CFM Packing Size (cm) 58X18X69 68X18X68 72X18X72 82X18X82 CKD Packing Size (cm) Export standard package, as all components CKD disassembled 5 parts in 5 boxes Part 1 of 5 Motorx1 28X19X30 28X19X30 28X19X30 28X19X30 Part 2 of 5 Propellersx5 48.5X27.5X12.5 62X28.5X14 64X28X14 73X27X16.5 Part 3 of 5 Fan Guardx5 57.5X13.5X57.5 66.5X16X66.5 71.5x16x71.5 82.5X16X82.5 Part 4 of 5 Stand Rodx5 108X30X13 108X30X13 108X30X13 108X30X13 Part 5 of 5 Basex1 46X46X6.3 46X46X6.3 46X46X6.3 46X46X6.3 20" Pedestal Fan 24" Pedestal Fan 26" Pedestal Fan 30" Pedestal Fan
Detail
| 20" Pedestal Fan | 24" Pedestal Fan | 26" Pedestal Fan | 30" Pedestal Fan | |
| Model | FSB-50 | FSB-60 | FSB-65 | FSB-75 |
| Size | Φ20 inch (50cms) | Φ24 inch (60cms) | Φ26 inch (65cms) | Φ30 inch (75cms) |
| Tilting Angle | 75° ( Left & right） | 40° ( Up & down) | ||
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V, 50 / 60Hz |
| Power (Max.) | 130W | 150W | 165W | 220W |
| Speeds (Max.) | 1380rpm | 1380rpm | 1380rpm | 1380rpm |
| Air Volume (m3/min) | 150 | 175 | 195 | 270 |
| Air Flow (Max.) | 5300 CFM | 6200 CFM | 6900 CFM | 9500 CFM |
| Packing Size (cm) | 58X18X69 | 68X18X68 | 72X18X72 | 82X18X82 |
| CKD Packing Size (cm) | Export standard package, as all components CKD disassembled 5 parts in 5 boxes | |||
| Part 1 of 5 Motorx1 | 28X19X30 | 28X19X30 | 28X19X30 | 28X19X30 |
| Part 2 of 5 Propellersx5 | 48.5X27.5X12.5 | 62X28.5X14 | 64X28X14 | 73X27X16.5 |
| Part 3 of 5 Fan Guardx5 | 57.5X13.5X57.5 | 66.5X16X66.5 | 71.5x16x71.5 | 82.5X16X82.5 |
| Part 4 of 5 Stand Rodx5 | 108X30X13 | 108X30X13 | 108X30X13 | 108X30X13 |
| Part 5 of 5 Basex1 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 |
| 20" Pedestal Fan | 24" Pedestal Fan | 26" Pedestal Fan | 30" Pedestal Fan | |||
|
|
|
|
|||
