Eco Green Energy Solar Powered Roof Exhaust Fan
keywords:
hiddenValue
- Detail
-

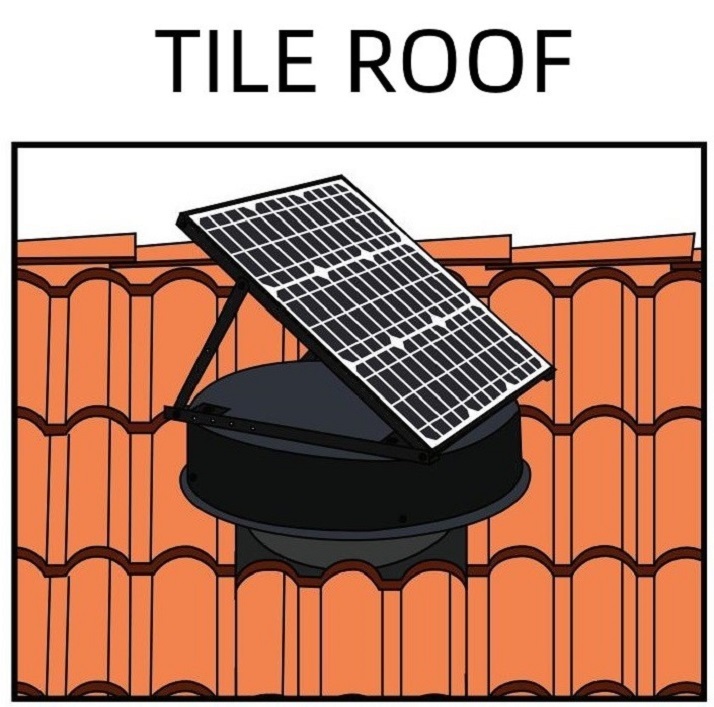

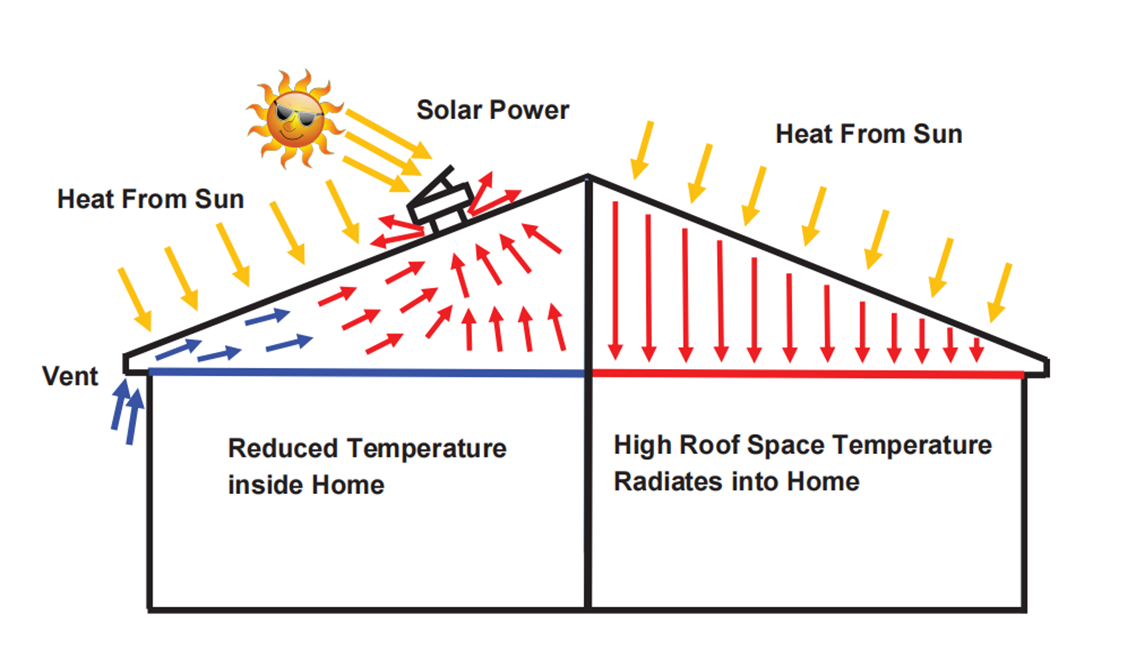

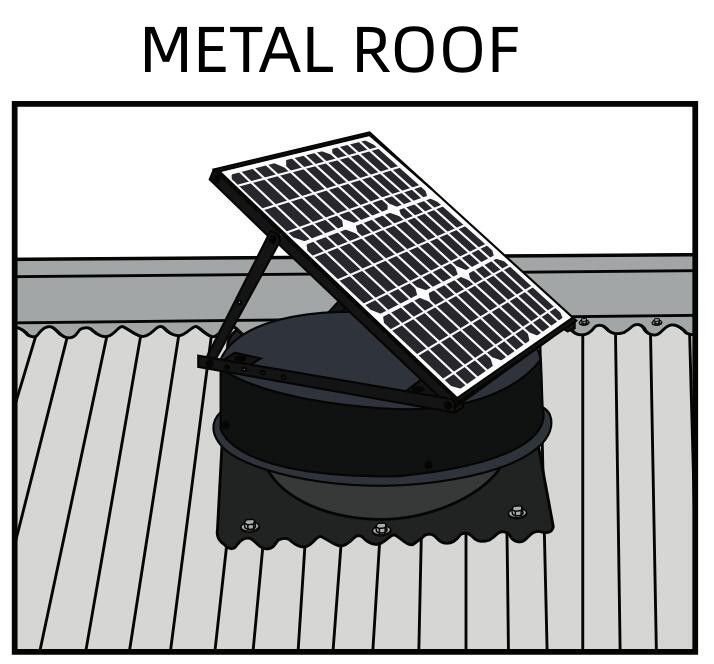

22.2X22.2X10.2 inches Solar Powered Roof Exhaust Fan Feature: • Effective energy saving Full sealed Brushless DC ball-bearing motor(40watts) for quiet operation • Promotes 880-1470 CFM airflow, lower temperature by up to 30°F, cooler in summer • 5-blades aluminum propeller, ultra-silent & wide-angle air supply • 40 watts solar panel powered maximizes sunlight utilization at no running cost • Steel air duct & aluminum alloy frame, flexible installation in any kind of structure building • Easy installation,bring powerful airflow with environmentally friendly power • Insufficient sunlight day, plug the cord into outlet
Solar Roof Exhaust Fan Model SRVF-320F Size 22.2x22.2x10.2in (565X565X260mm) Power (Max.) 40Watts 6-19 VDC solar panel Speeds (Max.) 1600rpm Air Volume (m3/min) 37 Air Flow (Max.) 1300 CFM Motor Brushless Motor with Double Ball bearing Solar Panel Type Monocrystalline PV, Heavy duty Frame, 3mm Tempered Glass Fan Blades Aluminum blades, 300mm 5 blades, with low resistance Spare parts Aluminum Top Cover, Aluminum Body, Steel Brackets and Stainless-steel Fasteners Noise <45 dB Automatic Automatic Shut Off <77°F+/- 5% Packing Weight (kgs) N.W.: 8.04 G.W.: 9.79 Packing 1pce/ctn Packing Size 22.8X22.4X11.1in 58X57X28.2cm Installation size 22.2X22.2in 565X565mm Warranty 2 Years limited warranty (10 Years on Solar Panel) Solar Roof Exhaust Fan
Detail
| Solar Roof Exhaust Fan | ||
| Model | SRVF-320F | |
| Size | 22.2x22.2x10.2in | (565X565X260mm) |
| Power (Max.) | 40Watts 6-19 VDC solar panel | |
| Speeds (Max.) | 1600rpm | |
| Air Volume (m3/min) | 37 | |
| Air Flow (Max.) | 1300 CFM | |
| Motor | Brushless Motor with Double Ball bearing | |
| Solar Panel Type | Monocrystalline PV, Heavy duty Frame, 3mm Tempered Glass | |
| Fan Blades | Aluminum blades, 300mm 5 blades, with low resistance | |
| Spare parts | Aluminum Top Cover, Aluminum Body, Steel Brackets and Stainless-steel Fasteners | |
| Noise | <45 dB Automatic | |
| Automatic Shut Off | <77°F+/- 5% | |
| Packing Weight (kgs) | N.W.: 8.04 | G.W.: 9.79 |
| Packing | 1pce/ctn | |
| Packing Size | 22.8X22.4X11.1in | 58X57X28.2cm |
| Installation size | 22.2X22.2in | 565X565mm |
| Warranty | 2 Years limited warranty (10 Years on Solar Panel) | |
| Solar Roof Exhaust Fan | |
|
|
