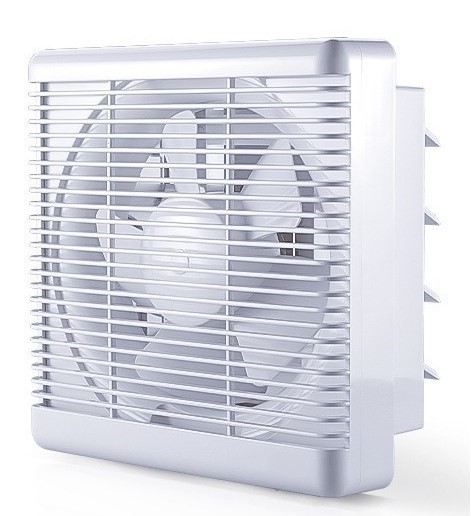

Auto Shutter Ventilating Fan With Grill
keywords:
hiddenValue
- Detail
-

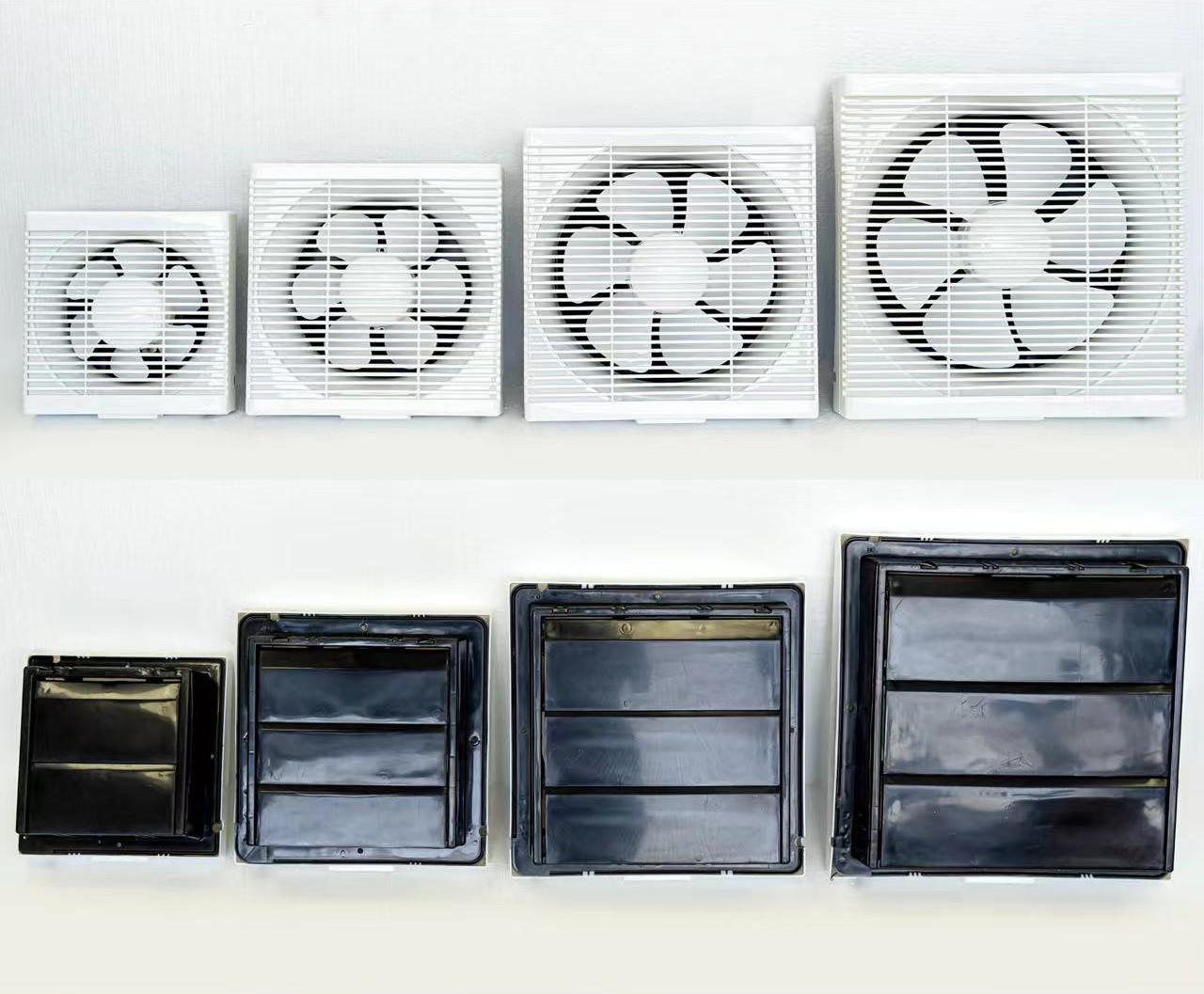

6 inches Ventilating Fan With Grill 8 inches Ventilating Fan With Grill 10inches Ventilating Fan With Grill 12 inches Ventilating Fan With Grill Feature: • 100% copper coil motor, powerful and robust motor • 5-blades or 6-blades PP propeller, minimum air cutting noise and maximum discharge of stale aire • Glossy bright luxury type front grill, PP body and propeller, Eye catching colours to match with your decor • Louvre shutters open automatically when fan is switched on • Black color or Milky white back shutters • One way air out
6" Exhaust Fan 8" Exhaust Fan 10" Exhaust Fan 12" Exhaust Fan Model APB-15 APB-20 APB-25 APB-30 Size Φ6 inch (150mm) Φ8 inch (200mm) Φ10 inch (250mm) Φ12 inch (300mm) Input 110-120V, 60Hz 180-240V, 50Hz 180-240V, 60Hz 180-240V, 50 / 60Hz Power (Max.) 28W 35W 38W 48W Speeds (Max.) 1280rpm 1280rpm 1280rpm 1280rpm Air Volume (m3/min) 4.8 8.0 12.0 18.0 Air Flow (Max.) 169 CFM 282 CFM 423 CFM 635 CFM Cubage (m2) 10-15 20-25 30-35 40-50 Std. Packing (pcs/ctn) 10 5 5 5 Packing Size (cm) 70.5X25X50.5 73X31X33 73X35.5X37 77.8X41X42 Panel Size 235X235mm 290X290mm 340X340mm 390X390mm Installation size 195X195mm Square 245X245mm Square 290X290mm Square 343X343mm Square
6" Exhaust Fan 8" Exhaust Fan 10" Exhaust Fan 12" Exhaust Fan
Detail
|
|
|
|
|
| 6" Exhaust Fan | 8" Exhaust Fan | 10" Exhaust Fan | 12" Exhaust Fan | |
| Model | APB-15 | APB-20 | APB-25 | APB-30 |
| Size | Φ6 inch (150mm) | Φ8 inch (200mm) | Φ10 inch (250mm) | Φ12 inch (300mm) |
| Input | 110-120V, 60Hz | 180-240V, 50Hz | 180-240V, 60Hz | 180-240V, 50 / 60Hz |
| Power (Max.) | 28W | 35W | 38W | 48W |
| Speeds (Max.) | 1280rpm | 1280rpm | 1280rpm | 1280rpm |
| Air Volume (m3/min) | 4.8 | 8.0 | 12.0 | 18.0 |
| Air Flow (Max.) | 169 CFM | 282 CFM | 423 CFM | 635 CFM |
| Cubage (m2) | 10-15 | 20-25 | 30-35 | 40-50 |
| Std. Packing (pcs/ctn) | 10 | 5 | 5 | 5 |
| Packing Size (cm) | 70.5X25X50.5 | 73X31X33 | 73X35.5X37 | 77.8X41X42 |
| Panel Size | 235X235mm | 290X290mm | 340X340mm | 390X390mm |
| Installation size | 195X195mm Square | 245X245mm Square | 290X290mm Square | 343X343mm Square |
| 6" Exhaust Fan | 8" Exhaust Fan | 10" Exhaust Fan | 12" Exhaust Fan | |||
|
|
|
|
|||
