Outside Patio Mist Fan
keywords:
hiddenValue
- Detail
-

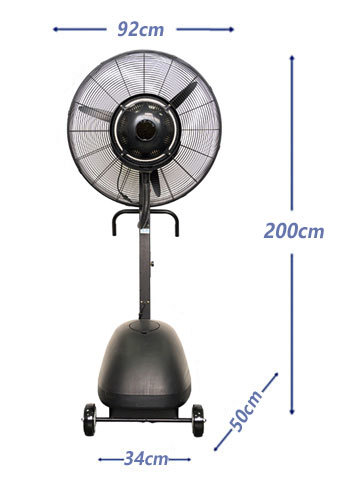

26 inches Patio Mist Fan 30 inches Patio Mist Fan 34 inches Patio Mist Fan Feature: • 100% copper coil motor with fuse, durable ball bearing, aeration-cooling • 3-blades die-casting aluminum propeller, ultra-silent stong wind • 2.0mm wire diameter clip type steel spiral wire fan guard, painted black color • Centrifugal misting system no nozzles or filters get clogged worries • Strong metal square stand pole with handles • Independent power switch & mist control switch • Mist consumption: 0-5L/H, mist volume adjustable • Water tank capacity: 60 Liter, unbreakable plastic tank • Okay to add disinfectant solution or ice to keep cool • Mobile design with 4 wheels & handles
26" Mist Fan 30" Mist Fan 34" Mist Fan Model FSB-65 FSB-75 FSB-85 Size Φ26 inch (65cms) Φ30 inch (75cms) Φ34 inch (85cms) Tilting Angle 90° ( Left & right) 30° ( Up & down) Input 110-120V, 60Hz 220-240V, 60Hz 220-240V, 50 Hz Power (Max.) 230W 280W 360W Speeds (Max.) 1400rpm 1400rpm 1400rpm Air Volume (m3/min) 168 220 260 Air Flow (Max.) 6000 CFM 7800 CFM 9200 CFM Available area 30-50m2 30-70m2 30-80m2 Reduce Temperatures 3ºC-8ºC 3ºC-8ºC 3ºC-8ºC Available distance 8-10m 8-10m 8-10m Continuance misting 10-12 hours 10-12 hours 10-12 hours CKD Packing Size (cm) Export standard package, as all components CKD disassembled 5 parts in 5 boxes Part 1 of 5 Atomizer 36.5X16X44 36.5X16X44 36.5X16X44 Part 2 of 5 (Grill+Blades) 72X11.5X72 82X11.5X82 92X11.5X92 Part 3 of 5 Motor 26X19X29.5 26X19X29.5 26X19X29.5 Part 4 of 5 60L Tank 55.5X47X49.5 55.5X47X49.5 55.5X47X49.5 Part 5 of 5 Stand rod 133X9X13.5 133X9X13.5 133X9X13.5 26" Mist Fan 30" Mist Fan 34" Mist Fan
Detail
| 26" Mist Fan | 30" Mist Fan | 34" Mist Fan | |
| Model | FSB-65 | FSB-75 | FSB-85 |
| Size | Φ26 inch (65cms) | Φ30 inch (75cms) | Φ34 inch (85cms) |
| Tilting Angle | 90° ( Left & right) | 30° ( Up & down) | |
| Input | 110-120V, 60Hz | 220-240V, 60Hz | 220-240V, 50 Hz |
| Power (Max.) | 230W | 280W | 360W |
| Speeds (Max.) | 1400rpm | 1400rpm | 1400rpm |
| Air Volume (m3/min) | 168 | 220 | 260 |
| Air Flow (Max.) | 6000 CFM | 7800 CFM | 9200 CFM |
| Available area | 30-50m2 | 30-70m2 | 30-80m2 |
| Reduce Temperatures | 3ºC-8ºC | 3ºC-8ºC | 3ºC-8ºC |
| Available distance | 8-10m | 8-10m | 8-10m |
| Continuance misting | 10-12 hours | 10-12 hours | 10-12 hours |
| CKD Packing Size (cm) | Export standard package, as all components CKD disassembled 5 parts in 5 boxes | ||
| Part 1 of 5 Atomizer | 36.5X16X44 | 36.5X16X44 | 36.5X16X44 |
| Part 2 of 5 (Grill+Blades) | 72X11.5X72 | 82X11.5X82 | 92X11.5X92 |
| Part 3 of 5 Motor | 26X19X29.5 | 26X19X29.5 | 26X19X29.5 |
| Part 4 of 5 60L Tank | 55.5X47X49.5 | 55.5X47X49.5 | 55.5X47X49.5 |
| Part 5 of 5 Stand rod | 133X9X13.5 | 133X9X13.5 | 133X9X13.5 |
| 26" Mist Fan | 30" Mist Fan | 34" Mist Fan | |||
|
|
|
|||
