Wall Industrial Electric Fan
keywords:
hiddenValue
- Detail
-

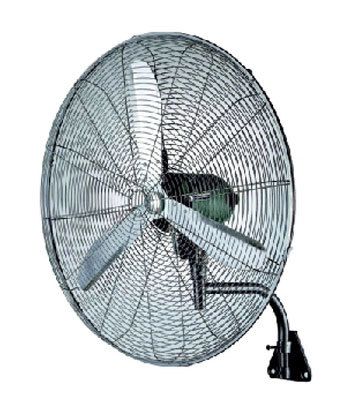

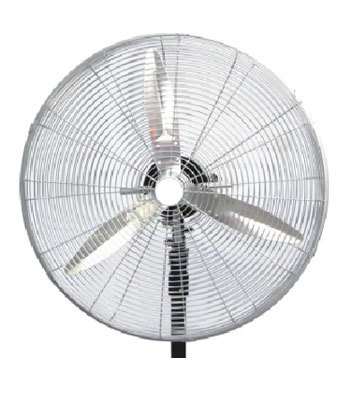

26 inches Electric Fan 30 inches Electric Fan Feature: • Heavy duty 100% copper coil motor with fuse, durable ball bearing, deliver high velocity, centralized and powerful air cooling • 3-blades big angle aluminum propeller for powerful wind • 1.8-2.0mm wire diameter clip type steel spiral wire fan guard, painted black or silver grill cage, or shining chromed color • Durable wall mount bracket with matte black color finish • 3 speed control with oscillation
26" Wall Fan 30" Wall Fan 26" Wall Fan 30" Wall Fan Model FSB-65 FSB-75 FSB-65 FSB-75 Size Φ26 inch (65cms) Φ30 inch (75cms) Φ26 inch (65cms) Φ30 inch (75cms) Tilting Angle 75° ( Left & right） 40° ( Up & down) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V,50 / 60Hz Power (Max.) 225W 260W 225W 260W Speeds (Max.) 1400rpm 1400rpm 1400rpm 1400rpm Air Volume (m3/min) 220 260 220 260 Air Flow (Max.) 7800 CFM 9180 CFM 7800 CFM 9180 CFM Packing Size (cm) 72X18X72 82X18X82 72X18X72 82X18X82 CKD Packing Size (cm) Export standard package, as all components CKD disassembled 3 parts in 3 boxes Part 1 of 3 Motorx1 28X19X30 28X19X30 28X19X30 28X19X30 Part 2 of 3 (Grill+Blades)x2 71.5X8.5X71.5 82.5X9X82.5 71.5X8.5X71.5 82.5X9X82.5 Part 3 of 3 Fan Bracketx10 48.5X27.5X20.5 48.5X27.5X20.5 48.5X27.5X20.5 48.5X27.5X20.5 26" Wall Fan 30" Wall Fan
Detail
|
|
|
|
|
| 26" Wall Fan | 30" Wall Fan | 26" Wall Fan | 30" Wall Fan | |
| Model | FSB-65 | FSB-75 | FSB-65 | FSB-75 |
| Size | Φ26 inch (65cms) | Φ30 inch (75cms) | Φ26 inch (65cms) | Φ30 inch (75cms) |
| Tilting Angle | 75° ( Left & right） | 40° ( Up & down) | ||
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V,50 / 60Hz |
| Power (Max.) | 225W | 260W | 225W | 260W |
| Speeds (Max.) | 1400rpm | 1400rpm | 1400rpm | 1400rpm |
| Air Volume (m3/min) | 220 | 260 | 220 | 260 |
| Air Flow (Max.) | 7800 CFM | 9180 CFM | 7800 CFM | 9180 CFM |
| Packing Size (cm) | 72X18X72 | 82X18X82 | 72X18X72 | 82X18X82 |
| CKD Packing Size (cm) | Export standard package, as all components CKD disassembled 3 parts in 3 boxes | |||
| Part 1 of 3 Motorx1 | 28X19X30 | 28X19X30 | 28X19X30 | 28X19X30 |
| Part 2 of 3 (Grill+Blades)x2 | 71.5X8.5X71.5 | 82.5X9X82.5 | 71.5X8.5X71.5 | 82.5X9X82.5 |
| Part 3 of 3 Fan Bracketx10 | 48.5X27.5X20.5 | 48.5X27.5X20.5 | 48.5X27.5X20.5 | 48.5X27.5X20.5 |
| 26" Wall Fan | 30" Wall Fan | |||
|
|
|||
