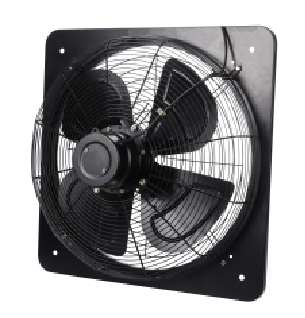

Light Duty Exhaust Fan With Grill & Nest Guards
keywords:
hiddenValue
- Detail
-
10 inches / 12 inches / 14inches / 16 inches / 20 inches Feature: • Hermetic punching shell & 100% copper coil ball bearing durable motor • Support frame in sheet Iron by punching coated with powder, safe and durable in use • Utilizes CAD optimized 4-blades iron propeller, large air flow and low in noise • Metal spiral wire front guard and nest shaped rear mesh are cleverly tied in with metal frame • Air renewal and exhaust fumes in all type of premises
10" Exhaust Fan 12" Exhaust Fan 14" Exhaust Fan 16" Exhaust Fan 20" Exhaust Fan Model APB-25D APB-30D APB-35D APB-40D APB-50D Size Φ10 inch (25cms) Φ12 inch (30cms) Φ14 inch (35cms) Φ16 inch (40cms) Φ20 inch (50cms) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V,50 / 60Hz Power (Max.) 28W 45W 75W 90W 128W Front Safe Guards ✓ ✓ ✓ ✓ ✓ Rear nest shaped mesh ✓ ✓ ✓ ✓ ✓ Speeds (Max.) 1400rpm 1400rpm 1400rpm 1400rpm 1400rpm Air Volume (m3/min) 14 18 38 45 58 Air Flow (Max.) 494 CFM 635 CFM 1341 CFM 1589 CFM 2048 CFM Std. Packing (pcs/ctn) 1 1 1 1 1 Packing Size (cm) 30.5X30X17.5 36.5X36.5X18 42.5X42X20.5 49X49X26 Panel Size 290X290mm 355X355mm 410X410mm 480X480mm 600X600mm 10" Exhaust Fan 12" Exhaust Fan 14" Exhaust Fan 16" Exhaust Fan 20" Exhaust Fan
Detail
|
|
|
|||
| 10" Exhaust Fan | 12" Exhaust Fan | 14" Exhaust Fan | 16" Exhaust Fan | 20" Exhaust Fan | |
| Model | APB-25D | APB-30D | APB-35D | APB-40D | APB-50D |
| Size | Φ10 inch (25cms) | Φ12 inch (30cms) | Φ14 inch (35cms) | Φ16 inch (40cms) | Φ20 inch (50cms) |
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V,50 / 60Hz | |
| Power (Max.) | 28W | 45W | 75W | 90W | 128W |
| Front Safe Guards | ✓ | ✓ | ✓ | ✓ | ✓ |
| Rear nest shaped mesh | ✓ | ✓ | ✓ | ✓ | ✓ |
| Speeds (Max.) | 1400rpm | 1400rpm | 1400rpm | 1400rpm | 1400rpm |
| Air Volume (m3/min) | 14 | 18 | 38 | 45 | 58 |
| Air Flow (Max.) | 494 CFM | 635 CFM | 1341 CFM | 1589 CFM | 2048 CFM |
| Std. Packing (pcs/ctn) | 1 | 1 | 1 | 1 | 1 |
| Packing Size (cm) | 30.5X30X17.5 | 36.5X36.5X18 | 42.5X42X20.5 | 49X49X26 | |
| Panel Size | 290X290mm | 355X355mm | 410X410mm | 480X480mm | 600X600mm |
| 10" Exhaust Fan | 12" Exhaust Fan | 14" Exhaust Fan | 16" Exhaust Fan | 20" Exhaust Fan | |||
|
|
|
|
|
|||
