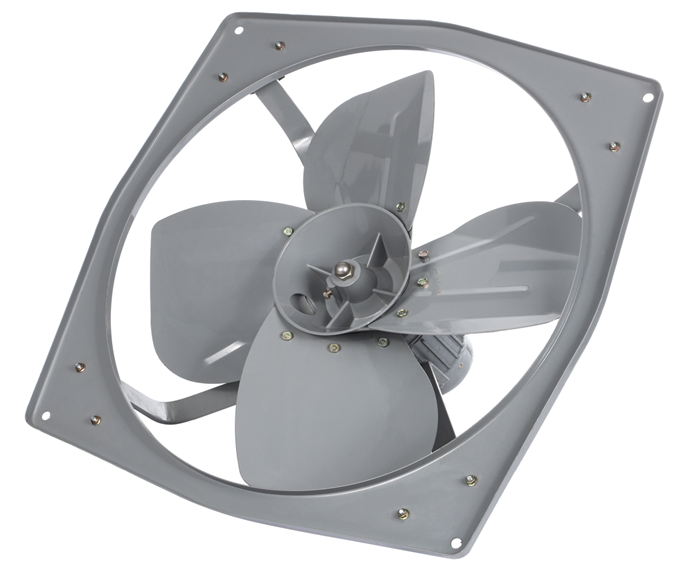

Heavy Duty Octagonal Extractor Fan
keywords:
hiddenValue
- Detail
-
12 inches / 16 inches / 18 inches / 24 inches Feature: • Hermetic punching shell & 100% copper coil ball bearing durable motor • Support frame in sheet Iron by punching coated with powder, safe and durable in use • Utilizes CAD optimized 4-blades iron propeller, large air flow and low in noise • Metal spiral wire front guard and nest shaped rear mesh can be install • Air renewal and exhaust fumes in all type of premises
12" Exhaust Fan 16" Exhaust Fan 18" Exhaust Fan 24" Exhaust Fan Model BHD-30 BHD-40 BHD-45 BHD-60 Size Φ12 inch (30cms) Φ16 inch (40cms) Φ18 inch (45cms) Φ24 inch (60cms) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V,50 / 60Hz Power (Max.) 80W 170W 230W 300W Speeds (Max.) 1400rpm 1400rpm 1400rpm 960rpm Air Volume (m3/min) 35 65 82 100 Air Flow (Max.) 1235 CFM 2295 CFM 2895 CFM 3531 CFM Std. Packing (pcs/ctn) 1 1 1 1 Packing Size (cm) 41X41X27 49X50X28 58X58X33 71X71X38 Panel Size 386X386mm 480X480mm 560X560mm 700X700mm Installation size(mm) 305X305mm 385X385mm 435X435mm 590X590mm 12" Exhaust Fan 16" Exhaust Fan 18" Exhaust Fan 24" Exhaust Fan
Detail
|
|
|
|
|
| 12" Exhaust Fan | 16" Exhaust Fan | 18" Exhaust Fan | 24" Exhaust Fan | |
| Model | BHD-30 | BHD-40 | BHD-45 | BHD-60 |
| Size | Φ12 inch (30cms) | Φ16 inch (40cms) | Φ18 inch (45cms) | Φ24 inch (60cms) |
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V,50 / 60Hz |
| Power (Max.) | 80W | 170W | 230W | 300W |
| Speeds (Max.) | 1400rpm | 1400rpm | 1400rpm | 960rpm |
| Air Volume (m3/min) | 35 | 65 | 82 | 100 |
| Air Flow (Max.) | 1235 CFM | 2295 CFM | 2895 CFM | 3531 CFM |
| Std. Packing (pcs/ctn) | 1 | 1 | 1 | 1 |
| Packing Size (cm) | 41X41X27 | 49X50X28 | 58X58X33 | 71X71X38 |
| Panel Size | 386X386mm | 480X480mm | 560X560mm | 700X700mm |
| Installation size(mm) | 305X305mm | 385X385mm | 435X435mm | 590X590mm |
| 12" Exhaust Fan | 16" Exhaust Fan | 18" Exhaust Fan | 24" Exhaust Fan | |||
|
|
|
|
|||
