Industrial Powerful Pedestal Fan
keywords:
hiddenValue
- Detail
-

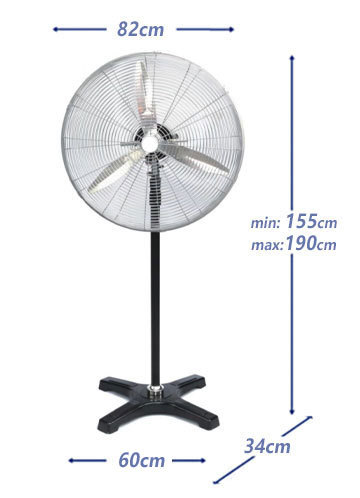

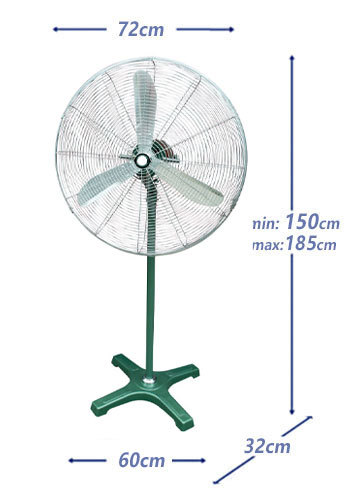

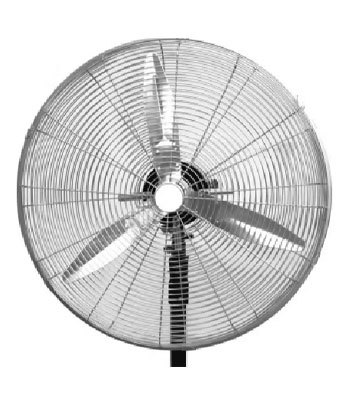

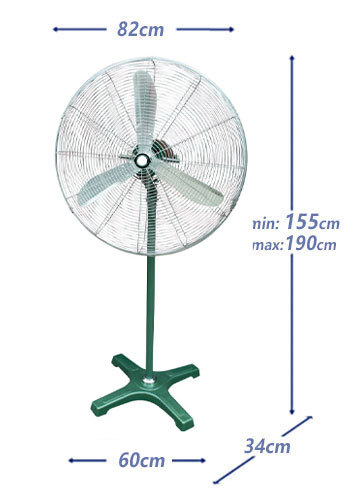

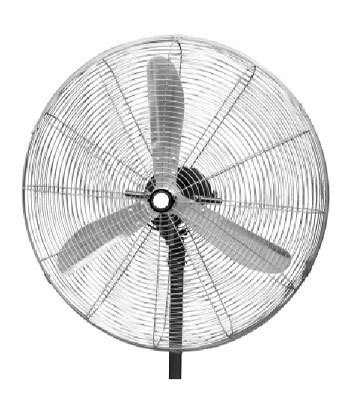

26 inches Pedestal Fan 30 inches Pedestal Fan Feature: • Heavy duty 100% copper coil motor with fuse, durable ball bearing, deliver high velocity, centralized and powerful air cooling • 3-blades big angle aluminum propeller for powerful wind • 1.8-2.0mm wire diameter clip type steel spiral wire fan guard, painted black or silver color grill cage, or shining chromed color • 1.3m / 1.6m or 1.9m strong stand pole, height adjustable • 7kg plastic cross base or 6kg X-shaped metal base • 3 speed control with oscillation
26" Pedestal Fan 30" Pedestal Fan 26" Pedestal Fan 30" Pedestal Fan Model FSB-65 FSB-75 FSB-65 FSB-75 Size Φ26 inch (65cms) Φ30 inch (75cms) Φ26 inch (65cms) Φ30 inch (75cms) Tilting Angle 75° ( Left & right） 40° ( Up & down) Input 110-120V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V, 50 / 60Hz Power (Max.) 225W 260W 225W 260W Speeds (Max.) 1400rpm 1400rpm 1400rpm 1400rpm Air Volume (m3/min) 220 260 220 260 Air Flow (Max.) 7800 CFM 9180 CFM 7800 CFM 9180 CFM Packing Size (cm) 72X18X72 82X18X82 72X18X72 82X18X82 CKD Packing Size (cm) Export standard package, as all components CKD disassembled 4 parts in 4 boxes Part 1 of 4 Motorx1 28X19X30 28X19X30 28X19X30 28X19X30 Part 2 of 4 (Grill+Blades)x2 71.5X8.5X71.5 82.5X9X82.5 71.5X8.5X71.5 82.5X9X82.5 Part 3 of 4 Stand Rodx5 108X30X13 108X30X13 108X30X13 108X30X13 Part 4 of 4 Basex1 46X46X6.3 46X46X6.3 46X46X6.3 46X46X6.3 26" Pedestal Fan 30" Pedestal Fan 26" Pedestal Fan 30" Pedestal Fan
Detail
|
|
|
|
|
| 26" Pedestal Fan | 30" Pedestal Fan | 26" Pedestal Fan | 30" Pedestal Fan | |
| Model | FSB-65 | FSB-75 | FSB-65 | FSB-75 |
| Size | Φ26 inch (65cms) | Φ30 inch (75cms) | Φ26 inch (65cms) | Φ30 inch (75cms) |
| Tilting Angle | 75° ( Left & right） | 40° ( Up & down) | ||
| Input | 110-120V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V, 50 / 60Hz |
| Power (Max.) | 225W | 260W | 225W | 260W |
| Speeds (Max.) | 1400rpm | 1400rpm | 1400rpm | 1400rpm |
| Air Volume (m3/min) | 220 | 260 | 220 | 260 |
| Air Flow (Max.) | 7800 CFM | 9180 CFM | 7800 CFM | 9180 CFM |
| Packing Size (cm) | 72X18X72 | 82X18X82 | 72X18X72 | 82X18X82 |
| CKD Packing Size (cm) | Export standard package, as all components CKD disassembled 4 parts in 4 boxes | |||
| Part 1 of 4 Motorx1 | 28X19X30 | 28X19X30 | 28X19X30 | 28X19X30 |
| Part 2 of 4 (Grill+Blades)x2 | 71.5X8.5X71.5 | 82.5X9X82.5 | 71.5X8.5X71.5 | 82.5X9X82.5 |
| Part 3 of 4 Stand Rodx5 | 108X30X13 | 108X30X13 | 108X30X13 | 108X30X13 |
| Part 4 of 4 Basex1 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 |
| 26" Pedestal Fan | 30" Pedestal Fan | 26" Pedestal Fan | 30" Pedestal Fan | |||
|
|
|
|
|||
