Industrial Stand Fan
keywords:
hiddenValue
- Detail
-

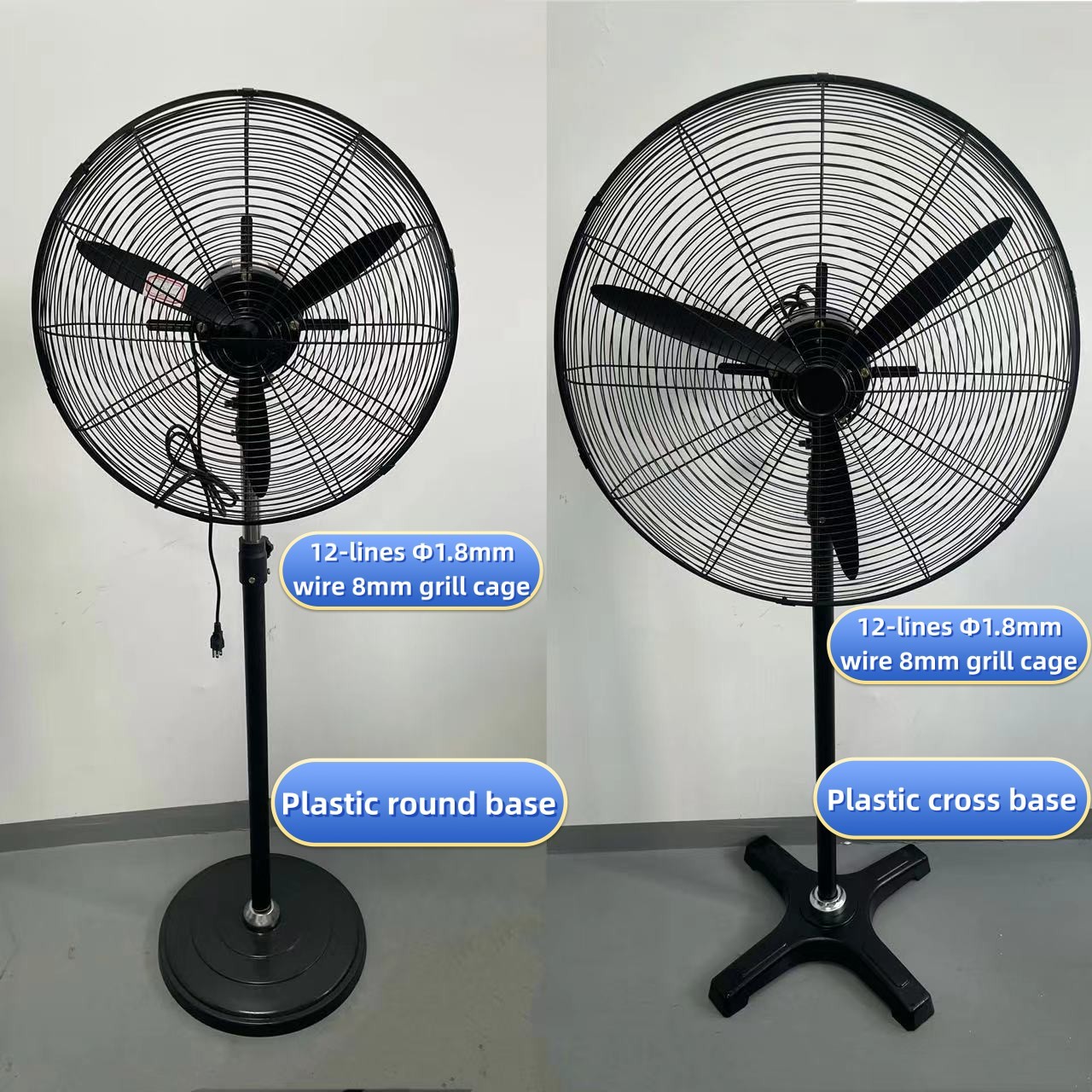

34 inches Industrial Stand Fan 30 inches Industrial Stand Fan 26 inches Industrial Stand Fan 24 inches Industrial Stand Fan 20 inches Industrial Stand Fan 18 inches Industrial Stand Fan •100% copper coil motor with fuse, durable ball bearing, deliver high velocity and powerful airflow • 3-blades die-cast aluminum propeller, ultra-silent stong wind • 1.8-2.0mm wire diameter clip type steel spiral wire fan guard, Black or Silver powder painted or shining chrome grill cage • 1.3m / 1.6m or 1.9m strong stand pole, height adjustable • 5 or 7kg plastic cross base or 6kg X-shaped metal base • 3 speeds control with oscillation
18" Stand Fan 20" Stand Fan 24" Stand Fan 26" Stand Fan 30" Stand Fan 34" Stand Fan Model FSB-450 FSB-500 FSB-600 FSB-650 FSB-750 FSB-850 Size Φ18 inch (45cms) Φ20 inch (50cms) Φ24 inch (60cms) Φ26 inch (65cms) Φ30 inch (75cms) Φ34 inch (85cms) Tilting Angle 90° ( Left & right） 40° ( Up & down) Input 110-127V, 60Hz 220-240V, 50Hz 220-240V, 60Hz 220-240V, 50 / 60Hz Power (Max.) 110W 130W 200W 230W 260W 290W Air Volume (m3/min) 130 150 185 205 290 320 Speeds (Max.) 1380rpm 1380rpm 1380rpm 1380rpm 1380rpm 1380rpm Air Flow (Max.) 4590 CFM 5300 CFM 6540 CFM 7245 CFM 10250 CFM 11310 CFM Packing Size (cm) 52X18X69 58X18X69 68X18X68 72X18X72 82X18X82 92X18X92 CKD Packing Size (cm) Export standard package, as all components CKD disassembled 4 parts in 4 boxes Part 1 of 4 Motorx1 (2 motors) 38X19X25 28X19X30 28X19X30 28X19X30 28X19X30 28X19X30 Part 2 of 4 (Grill+Blades)x2 52X52X8.5 58.5X58.5X8.5 66.5X66.5X8.5 71.5X71.5X8.5 82.5X82.5X9 92X92X9 Part 3 of 4 Stand Rodx5 108X30X13 108X30X13 108X30X13 108X30X13 108X30X13 108X30X13 Part 4 of 4 Basex1 46X46X6.3 46X46X6.3 46X46X6.3 46X46X6.3 46X46X6.3 46X46X6.3 18" Stand Fan 20" Stand Fan 24" Stand Fan 26" Stand Fan 30" Stand Fan 34" Stand Fan
Detail
| 18" Stand Fan | 20" Stand Fan | 24" Stand Fan | 26" Stand Fan | 30" Stand Fan | 34" Stand Fan | |
| Model | FSB-450 | FSB-500 | FSB-600 | FSB-650 | FSB-750 | FSB-850 |
| Size | Φ18 inch (45cms) | Φ20 inch (50cms) | Φ24 inch (60cms) | Φ26 inch (65cms) | Φ30 inch (75cms) | Φ34 inch (85cms) |
| Tilting Angle | 90° ( Left & right） | 40° ( Up & down) | ||||
| Input | 110-127V, 60Hz | 220-240V, 50Hz | 220-240V, 60Hz | 220-240V, 50 / 60Hz | ||
| Power (Max.) | 110W | 130W | 200W | 230W | 260W | 290W |
| Air Volume (m3/min) | 130 | 150 | 185 | 205 | 290 | 320 |
| Speeds (Max.) | 1380rpm | 1380rpm | 1380rpm | 1380rpm | 1380rpm | 1380rpm |
| Air Flow (Max.) | 4590 CFM | 5300 CFM | 6540 CFM | 7245 CFM | 10250 CFM | 11310 CFM |
| Packing Size (cm) | 52X18X69 | 58X18X69 | 68X18X68 | 72X18X72 | 82X18X82 | 92X18X92 |
| CKD Packing Size (cm) | Export standard package, as all components CKD disassembled 4 parts in 4 boxes | |||||
| Part 1 of 4 Motorx1 | (2 motors) 38X19X25 | 28X19X30 | 28X19X30 | 28X19X30 | 28X19X30 | 28X19X30 |
| Part 2 of 4 (Grill+Blades)x2 | 52X52X8.5 | 58.5X58.5X8.5 | 66.5X66.5X8.5 | 71.5X71.5X8.5 | 82.5X82.5X9 | 92X92X9 |
| Part 3 of 4 Stand Rodx5 | 108X30X13 | 108X30X13 | 108X30X13 | 108X30X13 | 108X30X13 | 108X30X13 |
| Part 4 of 4 Basex1 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 | 46X46X6.3 |
| 18" Stand Fan | 20" Stand Fan | 24" Stand Fan | 26" Stand Fan | 30" Stand Fan | 34" Stand Fan | |||
|
|
|
|
|
|
|||
